The VanityPRO is a multi-channel HDMI digital audio extractor with advanced signal processing built in. It enables the user to turn virtually any compatible HDMI source into a high-quality, up to eight-channel digital audio transport which supports PCM and DSD audio formats.
This heavily engineered audiophile HDMI audio extractor features custom DSD to PCM conversion algorithms and a state-of-the-art jitter reduction system. The result is a reference quality digital audio signal suitable for the most demanding applications of stereo and multichannel digital playback.
How is the VanityPRO different from all the other HDMI audio extractors? It basically addresses all the imperfections associated with the HDMI audio, one by one, with a ton of extra features the others don’t have.
Your Purchase Includes

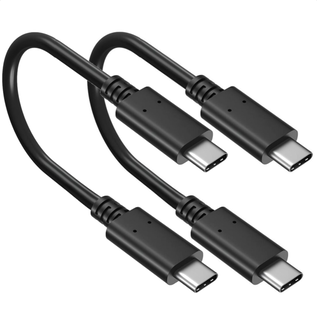

120V Power Supply Unit + cables: Dual port PSU with 2xUSB-C cables
Some Features
- HDMI 2.0a input and output.
- Up to 8-channel 192kHz/24bit PCM and 6-channel DSD64 audio extraction
- Custom high quality DSD to PCM conversion
- Advanced jitter attenuation
- DSD to DoP encoding
- HDMI Audio status monitoring
- Multiple options of multi-channel or stereo digital audio outputs. All major formats
- Synchronization clock outputs
Digital Audio Outputs Channels - 8 or 2 channel (stereo) output module options
Option 1 - 4xBNC for 8-channel output

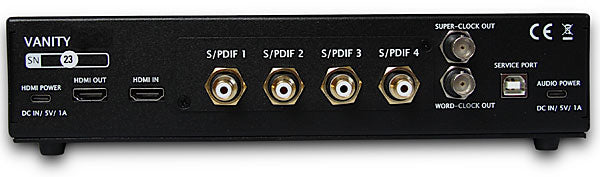

Option 2 - 4xRCA for 8-channel output

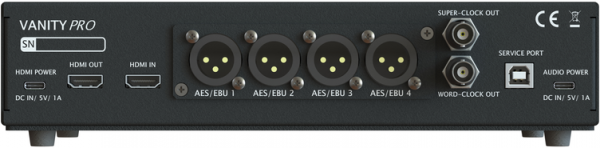

Option 3 - 4xXLR for 8-channel output

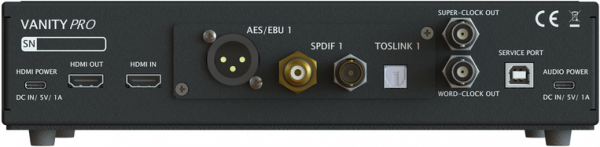

Option 4 - 1xXLR + 1xBNC + 1xRCA + 1x TOSLINK for 2-channel output
Option 5 - multichannel I2S output module with CMOS 3.3V levels
